Axial Fan
- Available in both aluminum and FRP
- Fans are non-corrosive in construction, highly efficient airflow
- Fan gives the required airflow at Low Speed & Lesser power Consumption
- The Fan Ranges is from 750 mm to 12000 mm in Diameter

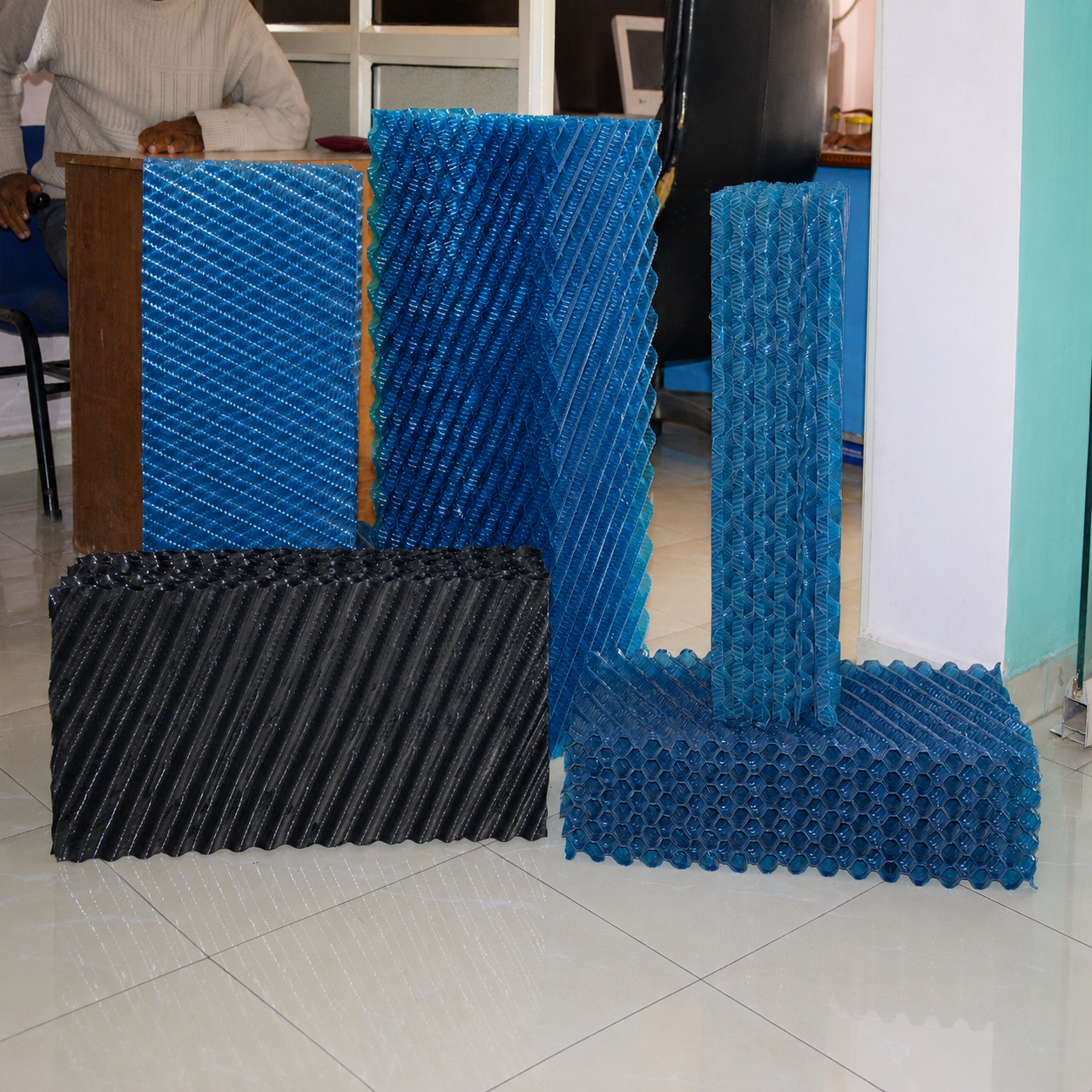

PVC Fills
- Material: PVC or ABS
- Flute size: 12 mm, 19 mm and 27 mm
- Thickness: 0.175 mm to 0.2 mm
- 600 mm x 300 mm x 150 mm
- 825 mm x 300 mm x 320 mm
- 900 mm x 300 mm x 300 mm
- 1200 mm x 300 mm x 300 mm
S type Eliminator:
- 600 mm x 600 mm x 150 mm
- 900 mm x 600 mm x 130 mm with 0.35 mm split sheet
Spray Nozzles
- Material: PP or ABS
- Size: 0.5", 0.75", 1", 1.5", 2", 2.5" and З".

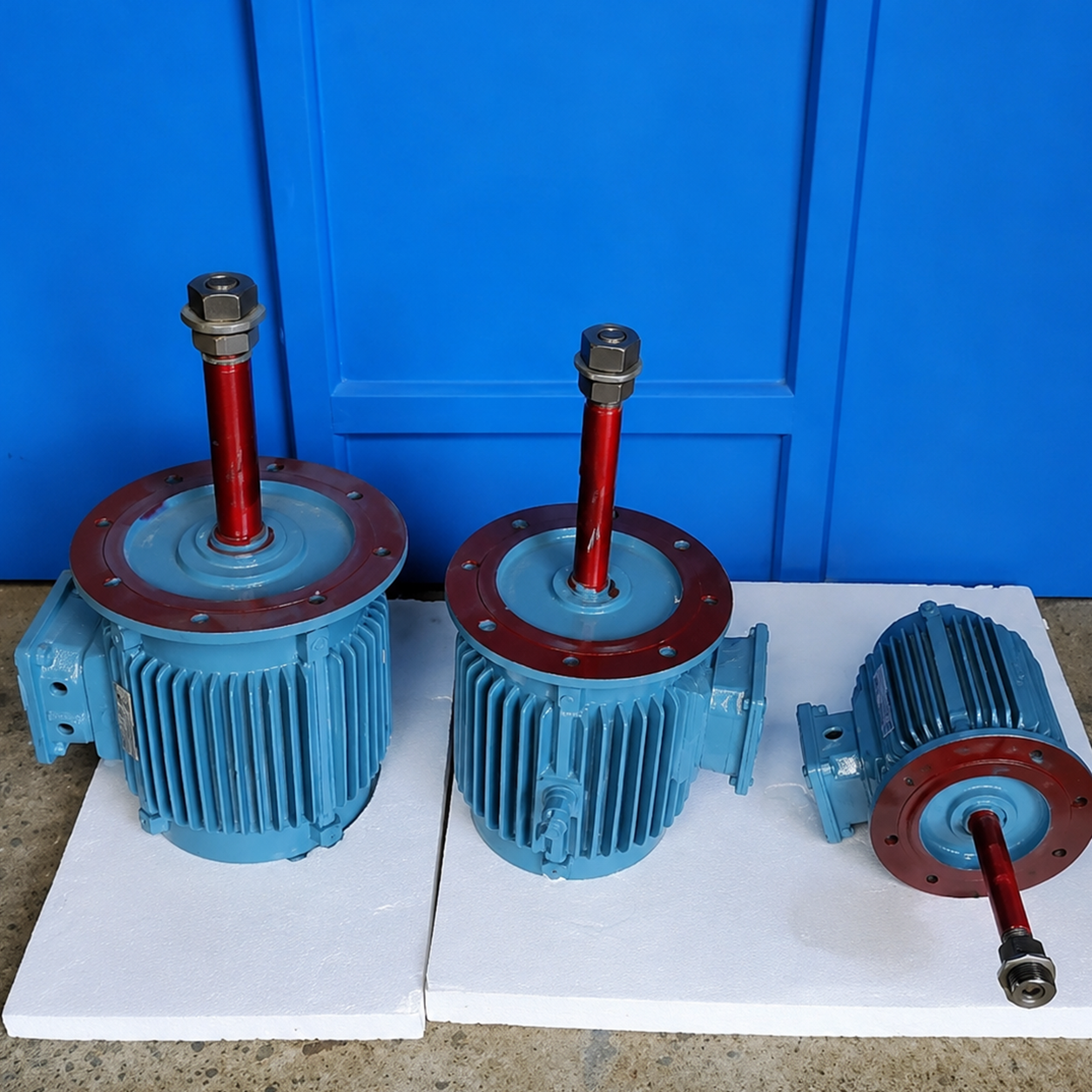

Electric motor
- Vertical flange mounted extended threaded shaft type induction motor with totally enclosed weather proof
enclosure and IP-55 Degree of protection.
- Class of insulation: F
- Efficiency: IE-1, IE-2, IE-3
- Flameproof

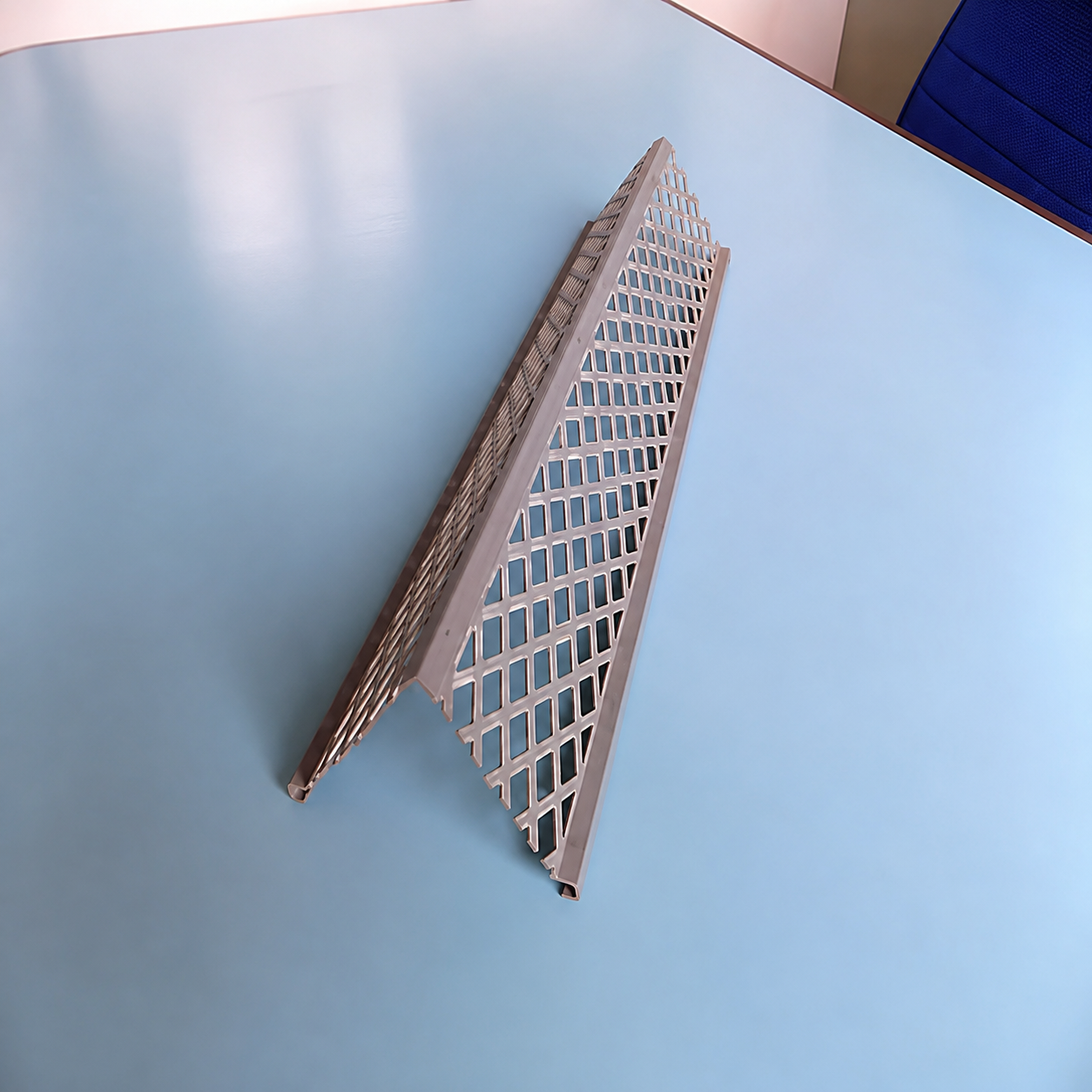

Splash V-Bar
- PVC Angle Profile with diamond or round perforation
- Suitable for poor quality of water
- Size: 65 × 65 mm, 40 × 40 mm, 25 × 25 mm
- Application: Sugar, Edible Oil, Chemical Industries

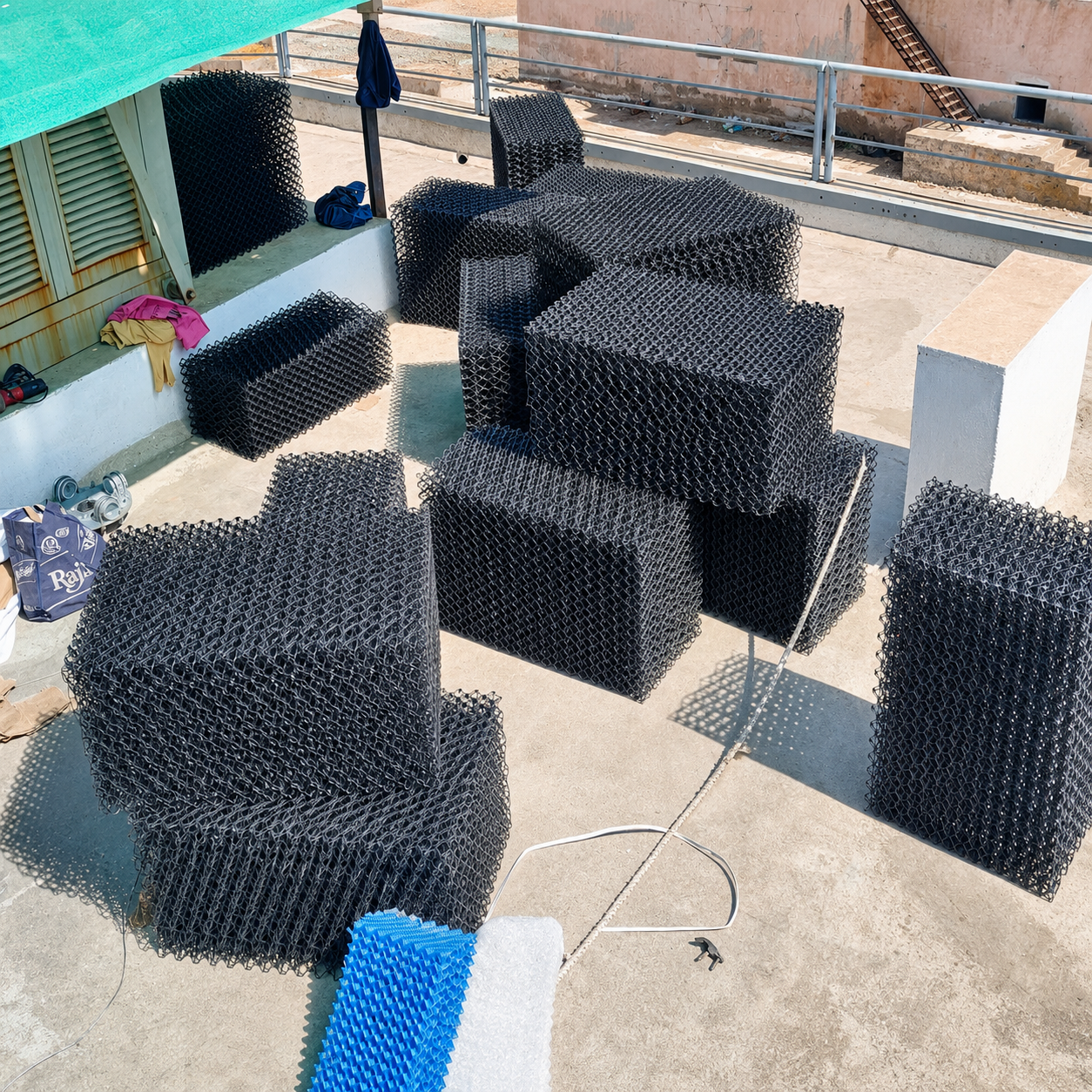

Trickle Fills
- Made of Poly Propylene (PP) UV Resistant.
- Flute size: 20 & 25 mm.
- High thermal performance & low fouling capability.
- High temperature resistant up to 75 C and chemical resistant.
- Cleanable open grid structure.
- Flame retardant protection ASTM E84 & SIN 4102 available.
- Suitable for Total Suspended Solids (TSS) up to 1000 PPM.
- Can be interchanged with existing film fills type cooling tower.
- Low to non breakdown/shutdown because of Fills chocking.

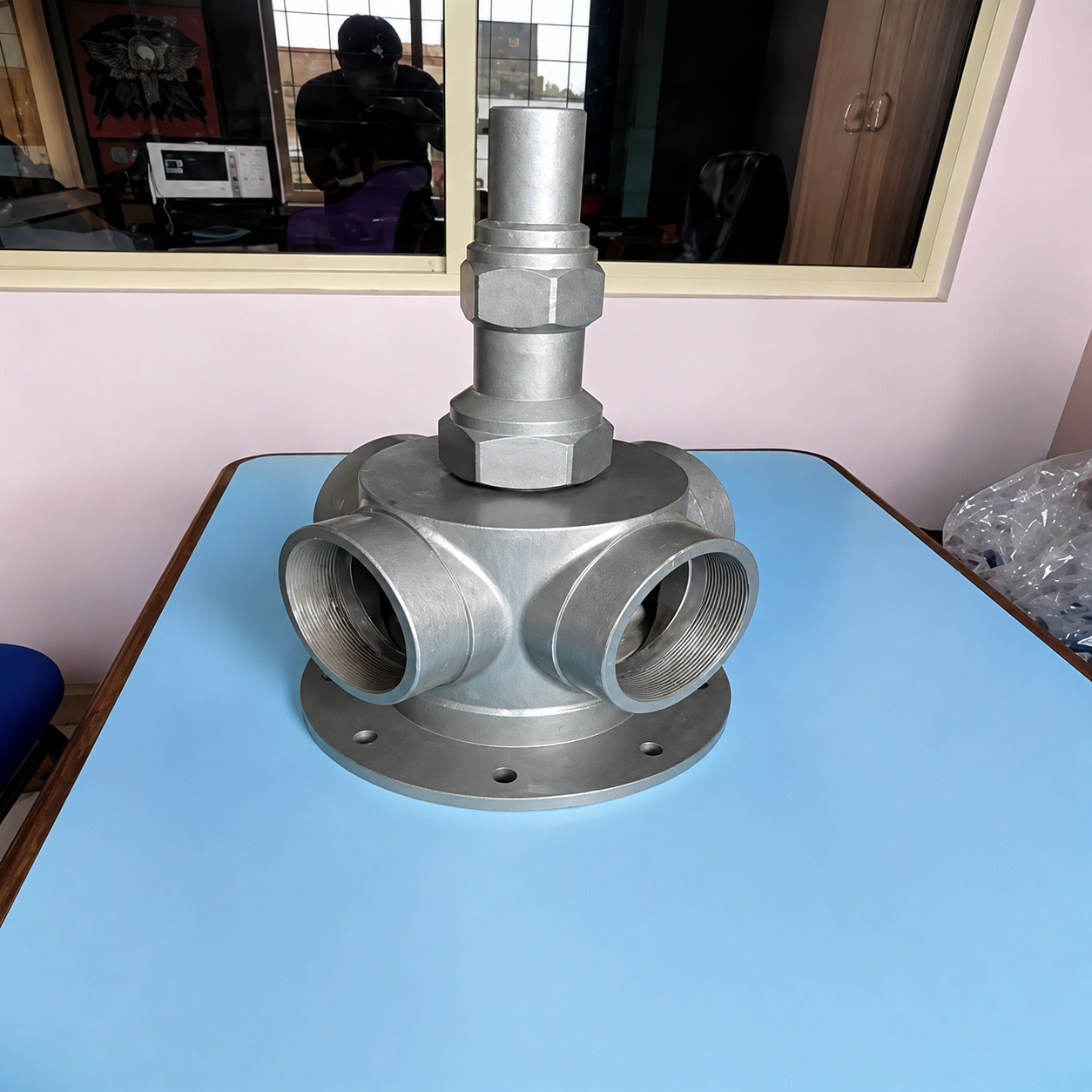

Sprinkler
- MOC: Plastic, Aluminium Alloy, Stainless Steel
- Range: Dia. 1.5" to 8"
- Available in: 2-Way, 4-Way, 6-Way
Connecting Shaft Assembly
- Shaft MOC: MS Hot-Dip Galvanized or Stainless Steel
- Coupler MOC: Cast Iron
- Available with Rubber Bushing
-
-
-
